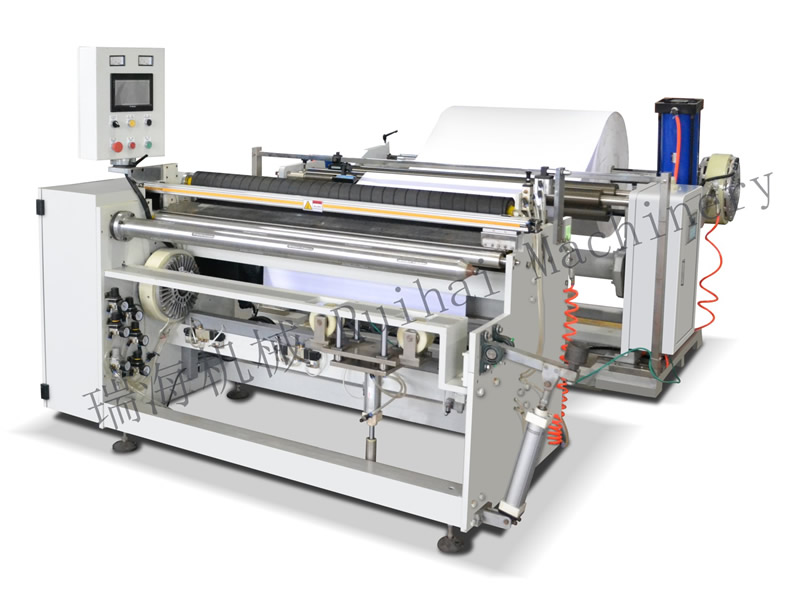

HQJ-B Microcomputer High-precision Crosscutting Machine

Name：HQJ-B Microcomputer High-precision Crosscutting Machine
No：HQJ-B

Performance and Characteristics
This machine is suitable for cutting big rolling packaging materials such as paper, film fabric leafher paper-plastic, multicolor laminated material, etc.
It adopts servo motor (or step motor) for controlling constant-length cutting.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability, low noise. (Pneumatic auto loading device is optional) This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm and tension adjustment by magnetic powder or manual with friction unit.

Main Technical Parameters

Model	HQJ-800B	HQJ-1100B	HQJ-1300B	HQJ-1600B
Max diameter of material	￠800mm	￠800mm	￠800mm	￠800mm
Max. width of cutting	800mm	1100mm	1300mm	1600mm
Length of cutting	20-1200mm	20-1200mm	20-1200mm	20-1200mm
Precision of fixed length	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Speed	10-140times/min	10-140times/min	10-140times/min	10-140times/min
Total Power	4kw	4kw	5.5kw	5.5kw
Weight (approx.)	1500kg	1700kg	2100kg	2300kg
Overall dimension(L×W×H)	3000×1400×1200(mm)	3000×1500×1200(mm)	3000×1700×1200(mm)	3000×1900×1200(mm)
